Biomek i7 Automated Workstation

The most powerful and comprehensive Biomek available.

  • High-throughput
  • 45 deck positions
  • 0.5 - 5,000 µL pipetting volume range
  • Single or dual heads

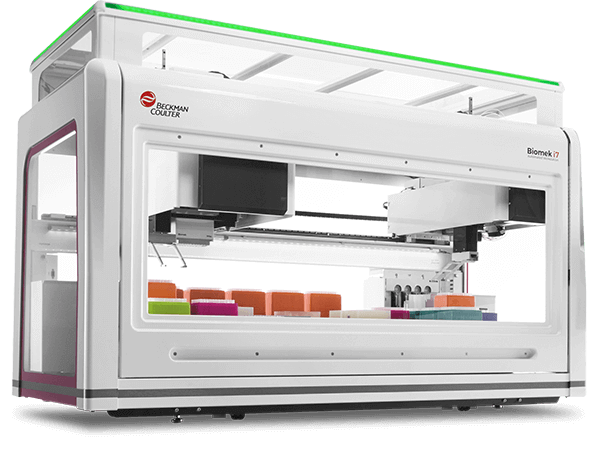

Biomek i7 Automated Liquid Handling Workstation
Biomek i7 Automated Liquid Handling Workstation

Spotlight Icon Features

Features
Supplies Tips

Tips
Spotlight Icon Software

Software
video icon

Videos
Spotlight Icon Integrated Systems

Integrated Solutions
Spotlight Icon RFQ

Request Quote
Spotlight Icon Technical Documents

Technical Documents
Spotlight Icon Training

Training
Spotlight Icon FAQ

FAQs

Choose a Biomek i7 Model

Features

Versatile Workspace

  • Spacious, open-platform with grid-based deck
  • Up to 45 deck positions
  • Internal LED light
  • Automated Labware Positioners (ALPs) for sample processing
  • Optional enclosed version to protect samples from airborne particles
  • Integrate additional devices on- or off-deck
  • Configurable for specific applications

Flexible Pipetting and Workflow Management

  • Multiple single- & dual-arm configurations with Multichannel heads (96/384/Pin tool) and/or Span-8 pipetting
  • Large-volume 1 mL multichannel pipetting head
  • High-access, rotating gripper(s) with unique offset finger design
  • Disposable & fixed Biomek pipette tips (including septum piercing)
  • Transfer volumes from 0.5 µL - 5,000 µL
  • Independent Span-8 probe calibration
  • 8 channel liquid-level sensing
  • Supports labware from tubes to 1,536-well microplates
  • Accurate intra-well pipetting

Simple System Operation

  • Easily automate existing processes & execute quick workflow changes
  • Powered by icon-based software with data tracking & LIMS connectivity
  • Windows 10 OS
  • Extend walk-away operation with process management and scheduling software
  • Guided system setup
  • Automated deck framing
  • Data-driven method operations including hit-picking & normalization
  • Light curtain safety feature
  • Instrument status light bar
  • DeckOptix cameras for live, remote-monitoring & on-error video capture

Application-focused Solutions

  • Consultative workflow analysis
  • Expert application & technical support
  • Biomek-automated demonstrated methods & capabilities for genomic, drug discovery & basic research workflows

Product Specifications

Minimum Table Support Requirements 1xcm(0xin)
Pod and Tool Type 1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Operating System Windows® 10
Software Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display 22" controller screen
Operating Modes Semi-automated, manual, controlled by operator
Item Specifications Referenced B87580
